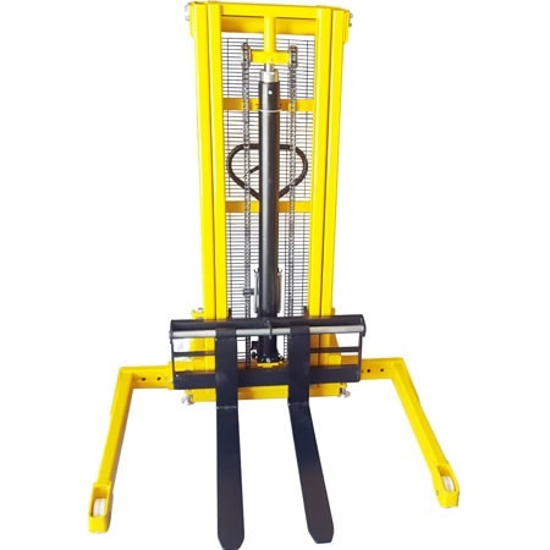

Manual Straddle Stacker 1000kg 1.6m Lift

The Compact Lifter is completely versatile and ideal for many applications and industries. The overall design makes the unit compact yet durable, strong and able to handle loads of up to 1000kg.

Part No: EW-SS1-16B

Shipping Charges *

$1,970.00 excl GST

Manual Straddle Stacker 1000kg 1.6m Lift

The Compact Lifter is completely versatile and ideal for many applications and industries. The overall design makes the unit compact yet durable, strong and able to handle loads of up to 1000kg.

Features:

Drop forged forks.
Light and easy manual steering system.
Manually operated hydraulic pump lifting system.
Heavy duty design with quality mast construction.
Includes wheel brakes and safety screen to ensure safety during operation
Adjustable straddle leg design adapts to all different kinds of pallets/ racking.
3 position control handle, lower, neutral & lift. Neutral allows the operator to manoeuver the load safety without effort.
Powder coated safety yellow for hi visibility and extra protection from wear and tear.

Specifications:

Capacity (kg) 1000
Load Centre (mm) 500
Lifting Height (mm) 70-1600
Fork Length (mm) 915
Min Turning Radius (mm) 1290
Outer Leg Width (mm) 1092-1372
Inner Leg Width (mm) 960-1240
Lifting Speed (mm) 16mm per sec
Lowering Speed Adjustable
Front Wheel Diameter (mm) 80
Rear Wheel Diameter (mm) 150
Overall Size L x W x H (mm) 1422x1372x2020
Net Weight (kg) 320
Shipping Dimensions L x W x H (mm) 100x610x2110
