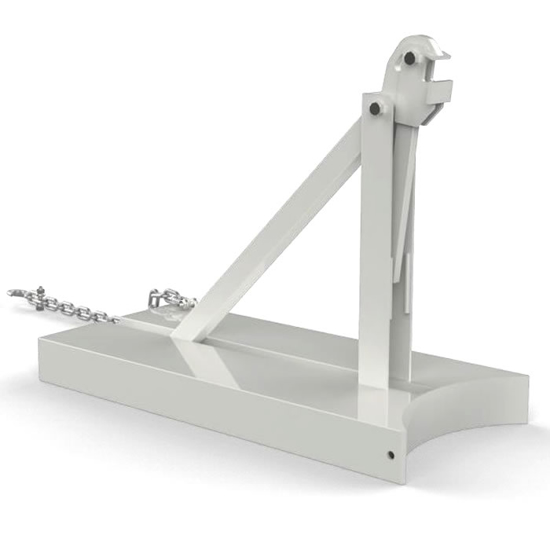

Parrot Beak Single Drum Clamp - Brisbane

The Parrot Beak Drum Clamp makes drum handling easy. A good field of vision allows the operator to continually observe the drum being handled. The operator does not leave the drivers seat.
Part No: EW-BGN1B
*
$1,160.00 excl GST

Drum Clamp Single Parrot Beak - Brisbane

Drum Clamp - A Series Slip-on, Single Parrot Beak

Drum handling made easy. A good field of vision allows the operator to continually observe the drum being handled. The operator does not leave the drivers seat. The unique Parrot Beak design provides a high clamping force, even when travelling over uneven ground. With few moving parts this attachment requires no down time for repairs. These Lifters are suitable for standard 205 litre steel or plastic drums.

The type BGN1B has been designed to lift a single drum while the type BGN-2 has been designed to lift 2 drums side by side or a single drum by either Grab Beak mechanism. A contoured rest acts at a point low enough down the drum to prevent damage to the drum and its labelling.
Products specifications
FnishZinc
SWL (kg)300
Pocket Size (mm)180 x 60
Load Centre (mm)1210
Horizontal Centre of Gravity (mm)533
Vertical Centre of Gravity (mm)136
Overall Dim (LxWxH) (mm)993 x 450 x 780
Min Fork Spread (ITI) (mm)100
Unit Weight (Kg)71
  • Retaining chains and shackles included
  • Supplied with rating plate and user manual
